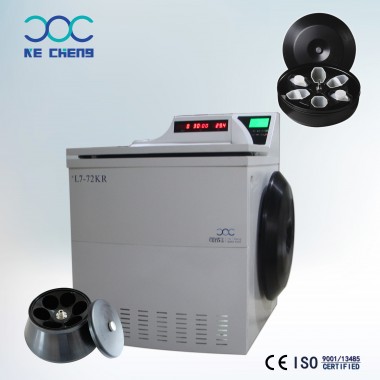

OEM lab centrifuge L7-72KR Standing low speed blood bag centrifuge refrigerated large capacity

  • FOB Price:US $2275-25270 / Vial(s)
  • Min.Order:1 Vial(s)
  • Production Capacity:50000set/year
  • Payment Terms:L/C , T/T , Western Union
  • Favorite

Product Information

  • Model:L7-72KR
  • Certification:CE
  • Net Weight:500KG
  • Dimension:976X860X1180mm
  • Packaging Details:Standard Export Package
  • Brand Name:Kecheng
  • Trademark:Kecheng
  • Place of Origin:China
  • Warranty:2 years
  • Max Speed:8000rpm
  • Max Capacity:6x2400ml
  • Max RCF:12166XG
  • Product Name:Floor Low Speed Refrigerated Centrfuge
  • Centrifuge Usage:Blood bag centrifuge
  • OEM:Availbale
  • Centrifugal Chamber:700mm
  • Packing:1set/sets
  • Temperature:Low temperature

Description

OEM lab centrifuge L7-72KR Standing low speed  blood bag centrifuge refrigerated large capacity

Key Features:

Touchscreen, controlled by computer, large screen LCD, simultaneous display of configured parameter and operating parameters, Chinese/English operating system, set up RPM, RCF, temperature, time at your own will, auto calculation of RCF, users can set up to 40 programs and change parameters during operation. Nine shifts for acceleration and deceleration timing, able to stop the machine any time. Optimal centrifuge effect, able to display RPM accelerating and decelerating curve.

Long life:

Imported environmental friendly CFC free cold compressor(refrigerant R404a), unique refrigeration heat dissipation system, heating and refrigerating dual temperature control, optimized centrifuge effect, great momentum force frequency variable motor, free of toner contamination, life prolonged.



Equipped with door lock and protection systems against imbalance, over speed and over heat, with three layers of protection, safe and reliable, to ensure safety of the machine and user.

Super large capacity:

   Able to isolate 12 X 400ml three strip bags or four strip bags, it is able to isolate the most number of blood bags in China. Equipped with 2400ml centrifuge bottle, able to isolate 14400ml samples. 6x2x1000ml Horizontal Rotor, able to fulfill biomedical and pharmaceutical requirement.

Widely applicable:

Widely applied to central blood station, pharmaceutics and biological product.

Technical Parameter:



Model

L7-72KR

Max RPM  (rpm)

8000rpm

 power supply

AC 220±22V,50Hz,50A

Max RCF

12166×g

 total power

7500W

Max Capacity

6×2400ml

Noise level

≤ 65dB(A)

 timing range

1min~23h59min

 centrifuge chamber diameter

φ700mm

Temp Range

-20℃~40℃

dimensions (length x width x height)

975×860×1180(mm)

Temp Accuracy

±2.0℃

 packaging dimensions (length x width x height)

1100×980×1400(mm)

RPM accuracy

±20r/min

Net Weight

500Kg

/

/

Gross Weight

540Kg

Rotor

No

Capacity

RPM/RCF

 Angle Rotor

1

6×500ml

8000rpm/11680×g

2

6×1000ml

7200rpm/12166×g

Swing-out Rotor

3

6×2×1000ml

4200rpm/5000×g

4

6×2400ml

4200rpm/5600×g
